Motorola CP185

Motorola Solutions CP185

Motorola

CP185

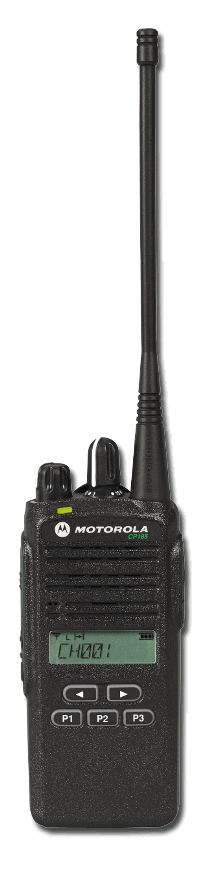

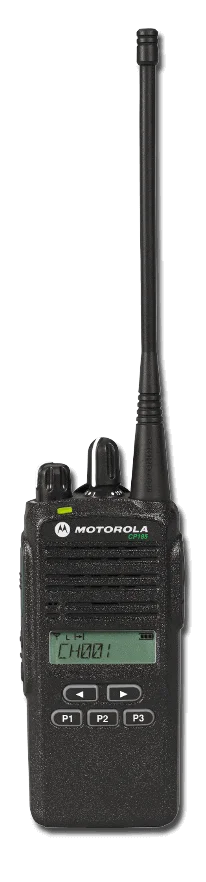

Ideal for educational institutions, retail and hospitality businesses, service and manufacturing industries, and many other demanding, professional applications, the Motorola CP™185 brings you a robust two-way radio solution. The CP185 has an extensive feature set including built-in voice scrambling for increased privacy, VOX capability for hands-free communication, five programmable buttons and X-Pand™ Technology to provide crisp, clear and strong audio quality even in noisy environments. Combined with the compact, lightweight design of the CP185, you get just what it takes to enhance communication while increasing productivity.

The CP185 is available in a Limited Keypad (LKP) model with a screen. The CP185 MDC comes in an LKP model and a No Keypad (NKP) model, providing the right features for each user.

Frequency Band:
VHF, UHF

Frequency Range:
VHF: 136-174 MHz; UHF: 435-480 MHz

Power Output:
4W (UHF) / 5W (VHF)

Number of Channels/Groups/Zones:
16 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Li-Ion battery: Up to 11 hours
NiMH battery: Up to 10 hours
High-Capacity Li-Ion battery: Up to 16 hours

Channel spacing:
12.5, 25

Dimensions H x W x D (with standard battery)
4.72 x 2.28 x 1.46 in

Weight (with standard battery)
12.34 ounces

Keypad / Keys
Limited

Display
Full

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IP54

Compact, lightweight design
Makes it easy to handle and use

Built-in simple voice scrambling
Increase the privacy of your conversations

VOX capable
Enables hands-free communication so you can focus on the job at hand

Programmable buttons
5 programmable buttons enables easy, one-touch access to up to 10 user-selected

Multi-channel capability
16 channels to support communication among all of your employees

X-Pand™ technology
Provides crisp, clear and strong audio quality even in noisy environments

Adjustable power levels
Adjustable high and low power levels (5 watt: VHF; 4 watt: UHF) help extend battery life

Repeater capability
For use when increased coverage is required

Talkaround capability
Enables communication even when a repeater is not being used

Tighter specifications
-70 dB adjacent channel selectivity provides enhanced rejection of interference from strong signals on adjacent channels so you can get your message through clearly

Military standards
Meets Military 810 C, D, E and F standards to stand up to the most demanding conditions

MDC1200 Capabilities
Provides caller ID, radio in-range check and radio inhibit decode in CP185 MDC No Keypad and Limited Keypad Models

DTMF Capabilities — CP185 MDC No Keypad Model
Provides receive voice selective call, call alert, transmit PTT ID Quik-Call II: Receive voice selective call, call alert

DTMF Capabilities — CP185 MDC Limited Keypad Model
Provides transmit/receive voice selective call, call alert, transmit PTT ID; Quik-Call II: Receive voice selective call, call alert

Image Not Available

8504762J02

Antenna VHF 14CM Sheath Encl

Image Not Available

HAD9338

Antenna VHF Heliflex 136-162 MHz

Image Not Available

HAD9742

Antenna VHF Stubby 146-162 MHz

Image Not Available

HAD9743

Antenna 162-174 MHZ Stubby

Image Not Available

NAD6502

Antenna VHF 146-174 MHz Whip

Image Not Available

NAD6579

Antenna 148-161MHz Whip

Image Not Available

PMAD4012

Antenna VHF 9CM (136-155MHZ)

Image Not Available

PMAD4013

Antenna VHF 9CM (155-174MHZ)

Image Not Available

PMAD4014

VHF Helical Antenna, 136-155 MHz (14cm)

Image Not Available

PMAE4003

Antenna UHF 9CM (430-470MHZ)

Image Not Available

PMAE4006

Antenna UHF 9CM (470-510MHZ)

Motorola PMNN4080

PMNN4080

Li-ion High-Capacity 2150 mAh 7.4V Battery

Image Not Available

PMNN4476

Li-ion 1500 mAh 7.4V Battery

Motorola PMNN4082

PMNN4082

NiMH 1300 mAh 7.4V Battery

Motorola HLN9701

HLN9701

Nylon Carry Case Short w/Belt Loop DTMF

Motorola HLN9844

HLN9844

2" Spring Belt Clip

Motorola PMLN5334

PMLN5334

Soft Leather Protective Case

Motorola HLN6602

HLN6602

Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch

Motorola Original Universal Chest Pack protects the radio and provides the freedom from holding it during standby communication mode. Universal Chest Pack fits virtually any radio.

Motorola HLN9985

HLN9985

Waterproof Bag with Large Strap

Motorola RLN4815

RLN4815

RadioPAk Radio/Utility Case

The RadioPAk is lightweight and comfortable. Worn around the waist, it keeps radios/phones at hand. It features a separate 6 x 8 inch zippered pouch for other on-the-job necessities.

Adjustable woven nylon belt fits both men and women.

Motorola EPNN9288

EPNN9288

90-134V, Switch Mode Power Supply with NA/LA Country Plug

Image Not Available

PMLN6371

Multi Unit Charger

Image Not Available

PMLN5398

Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply, (includes PMLN5228 and EPNN9288)

Image Not Available

NNTN8461

Charger Insert (CP185)

Motorola PMLN4444

PMLN4444

Earset Boom Microphone with PTT/VOX

Motorola HMN9754

HMN9754

Surveillance Microphone (Two-Wire)

Motorola PMLN4442

PMLN4442

Earbud with In-Line Microphone

Motorola PMLN4443

PMLN4443

Ear Receiver with In-Line Microphone

Motorola RLN4895

RLN4895

Earpiece w/Mic&PTT/Comb (Blk)

Motorola WADN4190

WADN4190

Receive-Only Flexible Earpiece with 3.5mm plug

This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.

Image Not Available

PMLN4620

Receive-Only D-Shell Earpiece

This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.

Image Not Available

RLN5317

Comfort Earpiece w/Mic and PTT Beige

Motorola RLN5318

RLN5318

Comfort Earpiece w/Mic and PTT Black

Motorola RLN6230

RLN6230

Extreme Noise Kit.

Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Black

Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories.

Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.

Image Not Available

RLN6231

Extreme Noise Kit.

Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Beige

Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories.

Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.

Image Not Available

RLN6232

Low Noise Kit - Clear Acoustic Tube Assembly.

Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Black

Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories.

Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.

Motorola RLN6241

RLN6241

Low Noise Kit - Clear Acoustic Tube Assembly.

Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Beige

Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories.

Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.

Motorola RLN6242

RLN6242A

Quick Disconnect Acoustic Tube Replacement

Motorola RLN4941

RLN4941

Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately

Motorola PMLN4445

PMLN4445

Ultra Lightweight Headset w/PTT

Motorola PMLN5003

PMLN5003

Lightweight Temple Transducer Headset

Motorola PMMN4008

PMMN4008

Remote Speaker Microphone

Motorola PMMN4013

PMMN4013

Remote Speaker Mic w/Coil Cord and Swivel Clip Remote Speaker Microphone with Coil Cord and Swivel Clip
Allows you to talk and listen without removing the radio from the belt, case or charger. Ideal for high noise level environments. This water resistant microphone includes: 6.0' Coiled Cord Assembly, and Swivel Clip.

Motorola PMMN4029

PMMN4029A

Remote Speaker Microphone with IP57 Rating

Motorola AARLN4885

AARLN4885

Receive-Only Covered Earbud with coiled cord

This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.

The Motorola CP185 is available in the following VHF and UHF models.

Standard Models

VHF

  • AAH03KEF8AA7AN 136-174 MHz, 2-5 Watts, 16 Channels, Display, Limited Keypad

UHF

  • AAH03RDF8AA7AN 435-480 MHz, 2-4 Watts, 16 Channels, Display, Limited Keypad

Signalling Models

VHF

  • AAH03KEC4AB7AN 136-174 MHz, 2-5 Watts, 16 Channels, No Display, No Keypad
  • AAH03KEF4AB7AN 136-174 MHz, 2-5 Watts, 16 Channels, Display, Limited Keypad

UHF

  • AAH03RDC4AB7AN 435-480 MHz, 2-4 Watts, 16 Channels, No Display, No Keypad
  • AAH03RDF4AB7AN 435-480 MHz, 2-4 Watts, 16 Channels, Display, Limited Keypad
