Motorola
You can afford to enhance your communications with the digital performance of eVerge™ two-way radios. eVerge radios are compact and precision-engineered to deliver value without sacrificing quality — giving you more capabilities and the flexibility you need to communicate at your best.
Frequency Band:
UHF
Frequency Range:
UHF: 403 – 470 MHz
Power Output:
Digital 3 W/2 W/1 W/0.5 W, Analog 2 W/1 W/0.5 W
Number of Channels/Groups/Zones:
256 Channels / 16 Groups
Standard battery chemistry type:
Battery life (based on a 5-5-90 duty cycle):
Digital 3W: 12 Hours/Analog 2W: 11 Hours
Dimensions H x W x D (with standard battery)
3.58 x 2.17 x 1.24 Inches (91 x 55 x 31.5 mm)
Weight (with standard battery)
7.6 oz [215 g] with [FNB-V142LI, ATU-20, Belt Clip]
Keypad / Keys
4 Programmable Keys
Display
8 Character Alphanumeric Display
Operating temperature
-22º F to +140º F (-30º C to +60º C)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP67
Key features
Compact, discreet, lightweight
Give your team members a compact, discreet, and lightweight radio that allows them to be comfortable in any situation.
Safety features
Lone worker alert, emergency alert, multiple scan options, better radio call quality with AMBE+2™ vocoder, battery status indicator (low battery alert), battery saver, busy channel lock out (BCLO), time out timer, key lock, AF minimum volume, auto power off, escalating alerts, low power, whisper mode, RSSI Indicator, and internal VOX (VH-190 required).
Popular with these industries:

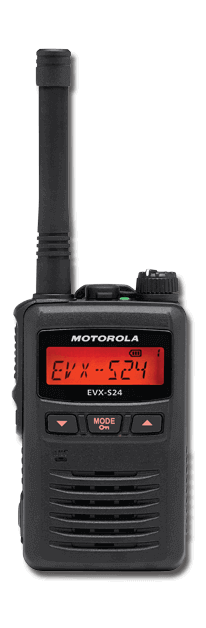

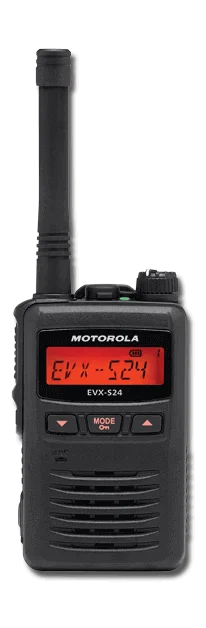

Worn on a belt, tucked away in a pocket or clipped to a lapel, the water-submersible and dust-proof EVX-S24 is designed to survive demanding conditions. It operates in both analog and digital modes, so it's ideal for use with mixed fleets. And in digital mode, enjoy noise cancellation for crisp audio and clear conversations.
 |
AAE23X501 ATU-6A: 400-430 MHz 6.5” |
|
AAE23X506 ATU-6B: 420-450 MHz 6.1” |
|
AAE23X502 ATU-6C: 440-470 MHz 6.1” |
|
AAE23X503 ATU-6D: 450-485 MHz 6” |
|
AAM23X501 ATU-20AS: Stubby 400-430 MHz 3.15” |
|
AAM23X504 ATU-20CS: Stubby 420-450 MHZ 3.15” |
|
AAM23X502 ATU-20DS: Stubby 440-470 MHz 3.15” |
|
AAM23X503 ATU-20FS: Stubby 450-480 MHz 3.15” |
|
AAM28X501 ATU-21AS: Super Stubby 400-420 MHz 2” |
|
AAM28X502 ATU-21CS: Super Stubby 420-440 MHz 2” |
|
AAM28X503 ATU-21DS: Super Stubby 440-460 MHz 2” |
|
AAM28X504 ATU-21FS: Super Stubby 460-480 MHz 2” |
|
PMNN4468 PMNN4468: 2300 mAh Li-ion Battery |
|
AAM22X501 LCC-S24: Leather Case, Belt Loop |
|
AAM22X502 LCC-S24S: Leather Case, Swivel Belt Loop |
|
AAM18X501 Clip-27: Belt Clip |
|
PA-57: Power Adapter |
|
AAM19X501 CD-65: Standard Single Unit Charging Cradle |
|
AAM20X501 CD-66: Enhanced Single Unit Charging Cradle |
|
VAC-6066: Multi Unit Charger |
|
AAM21X501 MH-89A4B: Earpiece Microphone |
|
AAM26X501 VH-190: VOX Lightweight Headset, Behind-the-Head |
|
AAM24X501 MH-90A4B: Compact Speaker Microphone |
|
AAE46X509 MH-66F4B: IP57 Submersible Speaker Microphone |
The Motorola EVX-S24 is available in the following UHF models.
